Crawl Space Drainage
Interior perimeter drains collect liquid water that reaches the crawl space and route it to a low point for discharge.
See drainage solutionsStanding water, wet soil, high humidity, and foundation-vent water can all create crawl space moisture problems. JHS Crawlspace Specialist provides honest inspections and recommends only the drainage or moisture-control work your crawl space actually needs.
No scare tactics and no automatic full-encapsulation recommendation. The inspection determines whether your home needs drainage, a sump pump, vent wells, a vapor barrier, a dehumidifier, encapsulation, or a combination.
Water under a house can come from several places. Finding the source comes before choosing a fix.
Homeowners usually start looking for help after finding standing water, damp soil, musty odors, condensation, or water below a foundation vent. At that point, they need a clear diagnosis rather than sales pressure. JHS is based in Spartanburg and provides crawl space waterproofing across Spartanburg, Greenville, Greer, Duncan, Inman, Boiling Springs, Moore, Roebuck, Chesnee, Woodruff and nearby Upstate communities.
Every crawl space is different. Some Upstate homes only need better drainage, downspout extensions, or a properly installed vapor barrier. Others benefit from a complete waterproofing system with interior drainage, a sump pump, sealed vapor barrier, crawl space encapsulation, and a commercial-grade dehumidifier. JHS Crawlspace Specialist does not assume every home needs the same package. After a thorough inspection, we recommend only the work your crawl space actually needs to stay dry and protect the structure above it.
Upstate summers are humid, and many local homes sit on clay-heavy soil that can stay wet after heavy rain. Older homes built over vented dirt crawl spaces may also have gutters, downspouts or grading that send roof and surface water toward the foundation. Those conditions vary from house to house, which is why the right fix varies too.
Every recommendation starts with a free, honest inspection of the crawl space and the exterior conditions that may be contributing to the problem. Sometimes the right scope is interior drainage and a sump pump; sometimes it is a downspout extension, vent well, vapor barrier, dehumidifier, encapsulation, or a combination. JHS does not use scare tactics or automatically recommend full encapsulation. Book your free crawl space inspection for a straightforward explanation of what the home needs.
Homes in Spartanburg, Greenville and nearby Upstate communities deal with a tough mix of heavy rain, red clay soil and long humid seasons.
In Spartanburg, Greenville, Greer, Boiling Springs, Duncan and the surrounding Upstate, crawl spaces take on water for reasons that are very local. Heavy seasonal rainfall can overwhelm gutters, low spots in the yard and older foundation drainage. Once that water reaches the home, clay-heavy soil can drain slowly and keep it near the foundation longer. The result is a crawl space that may stay damp for days after a storm, especially on shaded lots, sloped yards, and older homes with open foundation vents.
Standing water beneath a home is more than a nuisance. As it evaporates, it drives crawl space humidity up and keeps wood framing, subflooring, insulation, ducts and metal supports in a damp environment. High humidity can contribute to musty odors, wood deterioration, and conditions that attract moisture-seeking pests. Addressing the water source helps reduce continued moisture exposure.
Waterproofing protects the home by giving water a controlled path out and keeping ground moisture from building back up. Depending on the inspection, that may mean Crawlspace Drainage Solutions, a sump pump, a sealed liner, Vapor Barrier Installation, full encapsulation, or Crawlspace Dehumidifier Installation. The goal is to manage water and moisture so the floor system and materials under the home are not kept wet.
A crawl space should be inspected as a complete water-management system. The best solution depends on whether moisture is coming from roof runoff, foundation vents, wall seepage, groundwater, wet soil, or humid air.
An interior trench drain can collect water that reaches the crawl space perimeter or seeps through the foundation and direct it toward a controlled discharge point. The drain layout should follow the actual water path rather than being treated as an automatic add-on. Learn more about JHS crawl space drainage solutions.
A sump pump may be recommended when water collects below the home and gravity drainage is not practical. The pump receives water from the drainage system and moves it away from the crawl space. Not every damp or humid crawl space needs a sump pump.
Short or poorly directed downspouts can release roof water beside the foundation. Extending discharge farther from the home may be an important part of the solution when inspection findings show roof runoff is contributing to crawl space water.
Foundation vents close to the surrounding grade can allow rain or pooled surface water to enter. A vent well can help hold soil back and create a protected opening, but the surrounding drainage and downspout conditions still need to be evaluated.
Water that appears in low areas, rises through the soil, or returns after the ground becomes saturated may require interior drainage and a sump pump. A liner alone does not remove groundwater, so active water should be managed before ground-vapor control is treated as the complete answer.
A vapor barrier reduces moisture evaporating from the soil. Dehumidifier installation can help control airborne humidity, while crawl space encapsulation creates a more completely sealed environment. These services solve different parts of a moisture problem and are recommended only when the inspection supports them.
JHS does not use scare tactics and does not automatically recommend full encapsulation. The inspection determines whether the homeowner needs drainage, a sump pump, vent wells, a vapor barrier, a dehumidifier, encapsulation, or a combination. The goal is to address the water source and moisture conditions without selling work the crawl space does not need.

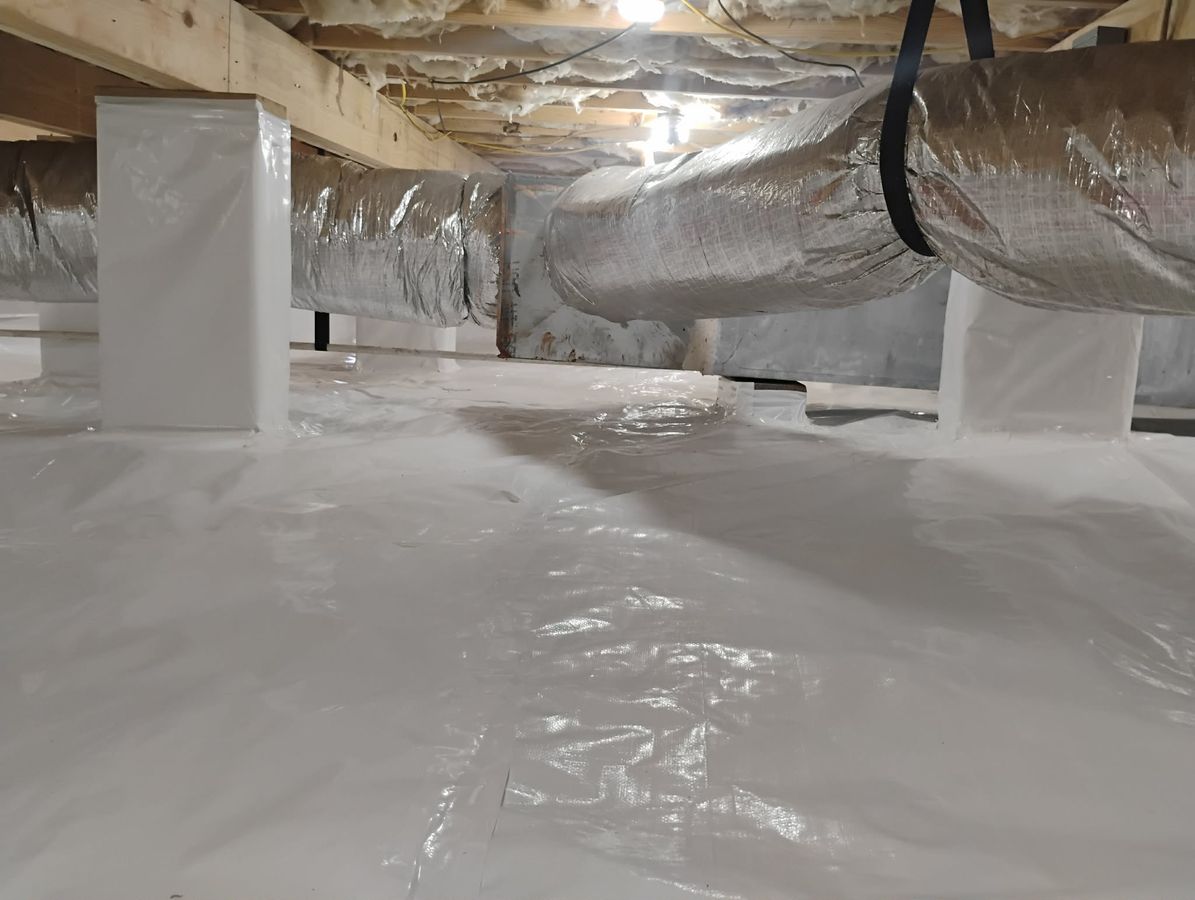

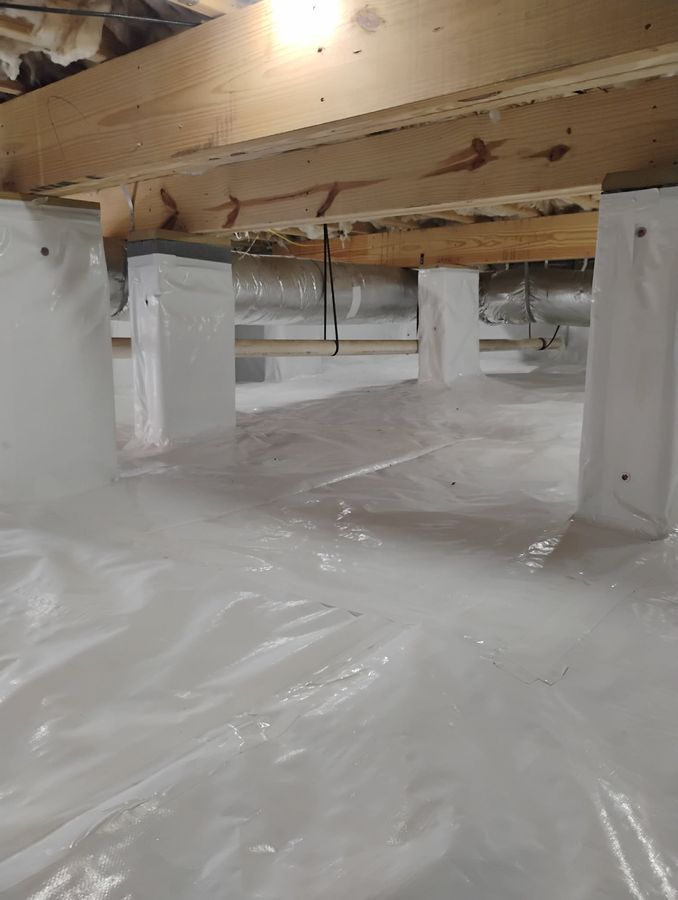

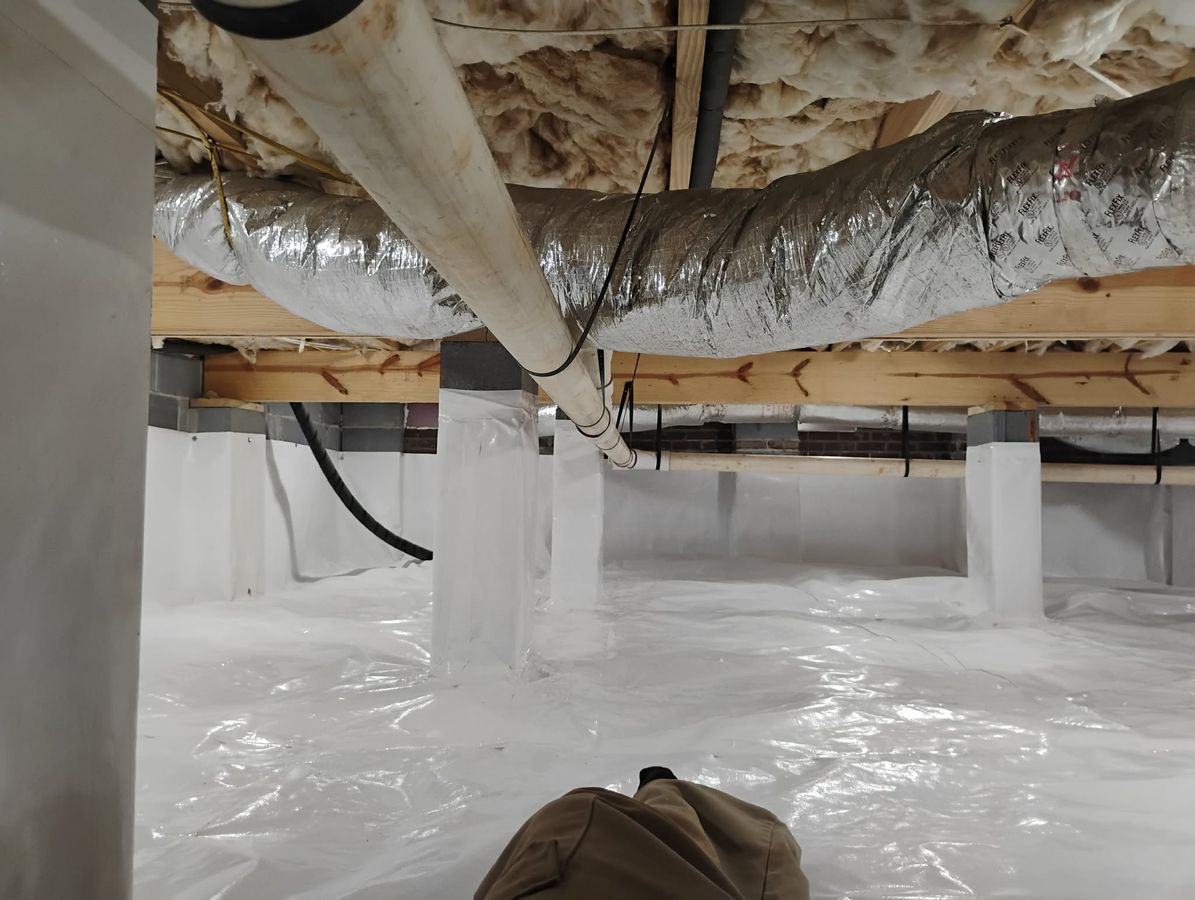

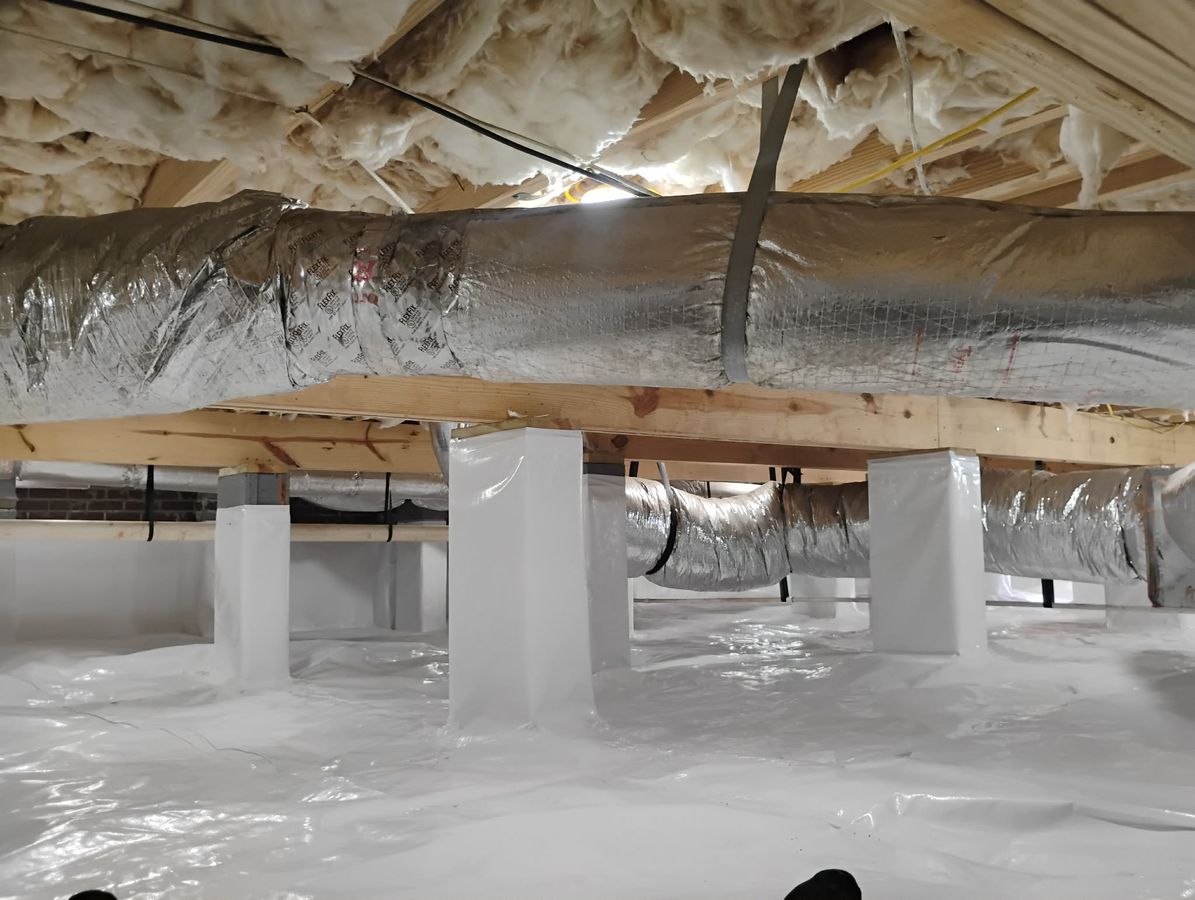

Recent crawl space waterproofing photos from JHS projects in the Upstate, showing real site conditions and completed work.
These are common reasons homeowners call. Each one is worth checking, and the inspection sorts out which ones actually point to water entry.
Because your crawl space is out of sight, the first signs often show up inside the house before you see any water. Here is what each one can point to.
The most obvious sign of a wet crawl space is water you can actually see — puddles on the dirt, mud, or a floor that's dark and damp every time it rains. Even if it dries out between storms, repeated crawl space water intrusion means the ground is staying saturated and your framing is sitting in a constant cycle of wet and dry.
Air from a crawl space can move up into the house, so a damp crawl space is one possible source of a musty smell — especially if it gets stronger when the HVAC runs. Odors can have other sources too, so the inspection checks whether the crawl space is actually wet and why.
Beads of water or rust on ductwork, pipes and metal mean humid air is reaching cool surfaces. Condensation is usually a humidity and surface-temperature issue rather than a water leak, so it more often points to vapor control or dehumidification than to drainage.
Fiberglass batts under the floor can absorb moisture, droop and fall onto the dirt. Fallen insulation is a sign the space has had a moisture problem worth looking into.
Dark mold on the joists, chalky white efflorescence on the block walls, or rust on metal support jacks all suggest moisture has been present. Efflorescence shows water has moved through the masonry at some point, but it can be left from past events and does not by itself prove water is still entering or that drainage is needed. The inspection looks for active seepage, water lines and wet soil to tell the difference.
A damp crawl space can add to indoor humidity. High humidity on its own does not mean you need drainage or a sump pump; it more often points to vapor control, vent sealing or dehumidification. Any effect on comfort or energy use varies by home.
Liquid water under a home should be traced to its source before anything is installed.
When standing water shows up under a home, the first question is usually, “Where is it coming from?” In the Upstate, it is often a combination of factors. Roof water from clogged, missing or short gutters and downspouts can land beside the foundation. Yards that slope toward the house can send rainwater to the crawl space wall. Clay-heavy soil can drain slowly and hold water against the foundation longer. And on some low-lying lots, groundwater can rise through the dirt floor after long rain.
Wherever it originates, water that pools under your home can evaporate into the crawl space air, raise humidity, and condense on joists, ductwork, and the subfloor. Mopping up the visible water does not address why it entered. The inspection identifies whether it should be redirected outside, collected with interior drainage, moved by a sump pump, or managed with another targeted approach.
Not every moisture problem is a water leak. Humid air can cause trouble without a visible puddle.
Some damp crawl spaces never have a visible puddle. When warm, humid outdoor air comes through open foundation vents and meets cooler surfaces under the home, it can condense on joists, subfloor and ductwork — the same way a cold glass sweats on a summer day. Over time, repeated condensation can support mold growth and wood decay.
This is where the diagnosis matters for crawl space moisture control. Liquid water and humid air are different problems with different fixes: water that enters the space may need to be redirected outside or collected with drainage, while humidity is managed with vapor control, vent sealing or dehumidification. High humidity alone is not a reason to install a sump pump or interior drain. We measure relative humidity and wood-moisture content during the inspection so you can see which problem you have — standing water, high humidity, or both.
Water left unaddressed can affect wood, insulation and metal under the home.
Ongoing moisture can support mold growth on wood and other materials in a crawl space, and a musty smell is one of the most common things homeowners notice. Whether that odor reaches the living space, and whether the crawl space is its only source, varies by home. Addressing the water or humidity source reduces the conditions mold needs; existing growth or damaged materials may need separate cleanup or repair.
Long-term moisture exposure can affect wood, insulation, metal components, and indoor comfort. JHS focuses its recommendation on water entry, drainage, ground vapor, and crawl space humidity so homeowners understand which moisture-control steps are appropriate.
Waterproofing is a plan, not a single product. These are the main tools; the inspection determines which ones, if any, your home needs.
Interior perimeter drains collect liquid water that reaches the crawl space and route it to a low point for discharge.
See drainage solutionsA sealed liner over the soil reduces ground moisture evaporating into the space. It does not stop liquid water.
See vapor barriersA sized crawl space dehumidifier removes moisture from the air and is set to a target humidity for the space.
See dehumidifiersWhen gravity discharge isn't practical, a pump lifts collected water from a sealed basin and discharges it away from the foundation — with battery backup available.
See all servicesWhen liquid water is entering, drainage gives it a managed path out instead of leaving it to pool on the dirt.
When water is reaching the crawl space, our crawl space drainage solutions often start with an interior perimeter drain — a channel along the inside footing that collects water reaching the perimeter and carries it by gravity to a collection point. A drain’s job is to collect and route liquid water; it does not dry humid air.
Outside the home, we also look at the sources we can reach: whether gutters and downspouts carry roof water away from the foundation, and whether grading slopes toward the house. Exterior corrections can reduce how much water an interior drain has to handle. Drainage is rarely the whole plan on its own, and vapor control and humidity control are separate jobs.
Once liquid water is managed, a vapor barrier reduces moisture rising from the soil.
Even after drainage carries away standing water, bare dirt can keep releasing moisture into the air. A vapor barrier reduces that. We install a puncture-resistant liner across the crawl space floor, overlapping and sealing seams to reduce ground moisture evaporating into the space. It does not stop liquid water, and it is not thermal insulation.
A good vapor barrier also transforms how the space looks and functions. The dark, damp dirt pit becomes a clean, bright surface you can actually inspect, and it keeps your insulation, ductwork and stored items off wet ground. On its own, a barrier is the right call for a crawl space with otherwise healthy numbers and no active water; alongside drainage, it handles ground vapor while the drain handles liquid water. We'll tell you honestly which situation your home is in.
Drainage and a barrier handle the water you can see and feel underfoot — a dehumidifier handles the moisture still hanging in the air.
Sealing the floor and draining water can reduce moisture, but in our humid climate the air in a crawl space can still hold enough humidity to cause condensation. That's the job of a crawl space dehumidifier. A crawl space unit pulls moisture out of the air, drains it away and is set to a target humidity for the space. Lower humidity makes conditions less favorable for mold, but a dehumidifier is not pest control and does not guarantee mold-free conditions.
When a dehumidifier is recommended, we size it to the cubic footage and conditions of your space and set a target humidity. Units need periodic filter care and checks; our maintenance program is available for scheduled visits. Drainage manages liquid water, a barrier reduces ground vapor, and a dehumidifier manages humidity in the air — different jobs, each recommended only when the inspection shows it is needed.
When water actively collects under your home, a sump pump is what physically lifts it up and sends it away.
For crawl spaces that take on real volumes of water — low lots, high water tables, or homes that flood with every heavy rain — drainage needs a destination, and gravity discharge is not always practical. That's the sump pump's role. The interior drain lines carry collected water to a sealed sump basin set into the lowest point of the floor, and the pump automatically switches on to lift that water up and discharge it well away from the foundation. The pump turns on when water collects in the basin and needs periodic checks to stay reliable.
Because Upstate storms are exactly when the power is most likely to flicker, we can add a battery backup so the pump keeps protecting your home even during an outage — the worst possible time for it to fail. For homes that stay dry on their own, a sump pump may not be necessary at all, and we'll say so. Where water collects and gravity discharge isn't suitable, a properly installed pump gives the drainage system a dependable outlet as part of crawl space waterproofing.
They overlap, but they aren't the same thing. Here's how to know which one your crawl space actually needs.
Homeowners use the words interchangeably, but waterproofing and encapsulation solve two different halves of the same problem. Waterproofing is the water-management side: it controls and removes liquid water using interior drainage, a sump pump, grading and gutter corrections and, where needed, a vapor barrier. It's what you need when there's active water — standing puddles, seepage through the block, a crawl space that floods after rain.
Crawl space encapsulation is the sealing side. A heavy reinforced liner is run up and mechanically fastened to the walls and piers, the foundation vents are sealed, and humidity is managed, often with a dehumidifier. Encapsulation reduces ground-vapor and outdoor-air entry — but if there's active water underneath, it has to be waterproofed first, or the water just collects behind the liner.
In practice, a wet crawl space usually needs waterproofing to stop the water, and many homeowners then encapsulate for a complete, sealed result. A space with high humidity but no liquid water may be better served by vapor control, vent sealing or encapsulation than by drainage. And a space with healthy numbers may need nothing more than a vapor barrier. That's exactly why we inspect first and measure before we recommend anything — so you invest in the system your home needs and not a dollar more. Compare the two in depth on our crawl space services hub.
If you are weighing a big proposal right now, read why not every crawl space needs encapsulation before you sign anything.
Waterproofing is the broad goal, but drainage, vapor control, encapsulation and dehumidification each handle a different part of the moisture problem.
Drainage systems collect and move liquid water. They are the starting point when rainwater seeps through foundation walls, runs across the soil or gathers in low spots. A sump pump may be part of that plan when gravity alone cannot provide a dependable discharge.
Vapor barriers slow moisture evaporating from the earth. Encapsulation goes further by sealing the floor, walls, piers, vents and other openings to reduce outside air and ground vapor entering the space. A dehumidifier controls the moisture that remains in the air after the space is closed.
During a free crawl space inspection, JHS traces the water source and recommends the smallest complete drainage or moisture-control system that addresses the conditions found.
Locally owned and here for the long haul — not here to scare you into the biggest invoice.
We crawl the whole space, take moisture readings and photos you can actually see, and map where the water comes from before we ever talk price.
When more than one fix is needed, drainage, vapor control and humidity control are planned together — not a single product sold as a cure-all.
Nathan Johnson, the owner, performs the inspection and walks you through the findings. No salesperson.
Based in Spartanburg and working under Upstate homes — we know the local soil, homes and humidity because we live here too.
We recommend only what your crawl space needs. Sometimes that's a full system; sometimes it's a barrier and a dehumidifier. You'll always know why.
Your inspection time is confirmed when you contact JHS, and you get a timeline with your scope before any work begins.
Honest work, clear communication, and dry crawl spaces homeowners across Spartanburg and Greenville actually notice.
JHS Crawlspace Specialist waterproofs crawl spaces throughout Spartanburg and Greenville County and the wider Upstate — Spartanburg, Greenville, Greer, Duncan, Inman, Boiling Springs, Moore, Roebuck, Chesnee, Wellford, Woodruff, Campobello, Landrum, Lyman, Reidville, Cowpens, Pauline, Five Forks, Taylors, Simpsonville, Mauldin and Travelers Rest. Explore all of our service areas, or jump to your city below.
Waterproofing is one piece of a healthy home. If you're searching nearby, these are the two services Upstate homeowners pair with waterproofing most often.
Explore the drainage and moisture-control services that may be recommended after the crawl space inspection.
“Wet crawl space” describes the result, not the source. The most dependable plan distinguishes exterior runoff, groundwater, plumbing or HVAC leaks, ground vapor, and humid-air condensation before recommending equipment.
Overflowing gutters, short downspouts, settled soil, hardscaping, and uphill grades can send roof and surface water toward the crawl space. Exterior corrections are often the first line of defense because they reduce the amount of water the interior system must manage.
Repeated puddles at low points or water that appears after long rain events may call for an interior drainage route and sump system. Ask where collected water discharges and how the line is protected from sending water back toward the house.
A supply line, drain, water heater, HVAC condensate line, or sweating duct can mimic a groundwater problem. Active leaks need repair, while condensation points to a humidity and surface-temperature issue that drainage alone may not fix.
Damp soil can release moisture even when no puddle is visible. A properly detailed vapor barrier or encapsulation system reduces that source; a crawlspace-rated dehumidifier can then control moisture remaining in the air.
Common questions from Upstate homeowners dealing with crawl space water.
Notice when and where the water appears. Water near a wall after rain may point to roof runoff, grading, downspouts, foundation openings, or seepage through masonry. Water rising in low areas of the soil can indicate groundwater or saturated soil. Water directly below a foundation vent may be entering through that opening. JHS inspects the crawl space, exterior drainage, downspouts, vents, soil conditions, and visible water patterns before recommending work.
No. A sump pump is useful when liquid water collects in the crawl space and needs a dependable discharge point, especially when an interior drain is required. If the problem is primarily roof runoff, a short downspout, water entering through a vent, ground vapor, or high humidity without pooling water, another targeted solution may be more appropriate.
No. A vapor barrier reduces moisture evaporating from the soil, but it is not a substitute for drainage when groundwater or saturated soil is producing liquid water. Active water may require an interior trench drain, a sump pump, exterior water corrections, or a combination before a vapor barrier is installed.
No. Some homes need drainage, a sump pump, downspout extensions, vent wells, or a vapor barrier without full encapsulation. Encapsulation may be appropriate when the inspection also identifies a need to seal the crawl space and manage humidity, but JHS does not automatically recommend it.
The cost depends on the source and amount of water, crawl space size and access, and whether the solution includes drainage, a sump pump, downspout extensions, vent wells, a vapor barrier, a dehumidifier, encapsulation, or a combination. JHS provides a free inspection and explains the recommended scope before work begins rather than giving a one-size-fits-all price.
Yes. Foundation vents that sit near grade can admit wind-driven rain, roof runoff, or water that collects beside the foundation. A properly selected vent well can help keep soil and surface water away from the opening, while downspout or grading corrections may also be needed depending on the source.
Look for a local company that offers a free inspection with moisture readings and photos before quoting, explains where the water is coming from, and treats the cause rather than just the symptoms. The right plan may be drainage, a sump pump, exterior corrections, vapor control, a dehumidifier or a combination — not every home needs all of them. JHS Crawlspace Specialist is based in Spartanburg and provides crawl space waterproofing across Spartanburg and Greenville County, including Greer, Duncan, Inman, Boiling Springs, Moore, Roebuck, Chesnee, Wellford, Woodruff, Lyman, Reidville, Cowpens, Pauline, Taylors, Simpsonville, Mauldin and Travelers Rest. Call (864) 804-9384 to schedule a free inspection; your appointment time is confirmed when you contact us.
The clearest sign is standing water or damp soil under the home after it rains. Water lines on the piers, mud, or wood that is dark and soft also warrant an inspection. A musty smell, condensation on ducts and pipes, mold, efflorescence, rusty support jacks, fallen insulation and high indoor humidity are reasons to have the space checked, but they do not by themselves prove water is entering — humidity and condensation problems are often handled with vapor control or dehumidification rather than drainage.
In the Upstate, crawl space water often comes from a combination of exterior grading that slopes toward the house, clogged, missing or short gutters and downspouts, clay-heavy soil that drains slowly, and, on some lots, groundwater. When that water has no managed path out, it can seep through the block and pool on the dirt floor. Depending on the source, the fix may be exterior corrections, an interior drain that collects the water, a sump pump where gravity discharge isn't practical, or a combination.
Waterproofing is the water-management side of the work: it controls and removes liquid water with drainage channels, a sump pump, grading corrections and, where needed, a vapor barrier. Encapsulation is the sealing side: a heavy reinforced liner is run up the walls and piers, the vents are sealed, and humidity is managed, often with a dehumidifier. A wet crawl space usually needs the water addressed first, and some homeowners then encapsulate. We inspect first and recommend only what your home actually needs. See our crawl space encapsulation page for more detail.
Crawl space waterproofing cost depends on the size of the crawl space, the amount of standing water, the condition of the insulation and framing, and whether the home needs drainage, a sump pump, a vapor barrier, encapsulation, or a commercial-grade dehumidifier. A mostly dry crawl space may only need targeted moisture control, while a flooding crawl space usually needs a fuller system. JHS Crawlspace Specialist provides a free inspection and a clear, itemized scope before recommending any work.
You may need a sump pump if water actively collects under your home, if your lot sits low, if the crawl space has a high water table, or if interior drainage needs a place to send collected water. The drain lines carry water to a sealed sump basin, and the pump moves it out and away from the foundation. If your crawl space does not take on liquid water, drainage improvements, a vapor barrier, or humidity control may be enough.
No. A vapor barrier helps block ground moisture from evaporating into the crawl space, but it does not remove standing water or stop active water intrusion by itself. If water is entering through the foundation, rising through the soil, or pooling after rain, the crawl space usually needs drainage and possibly a sump pump before the vapor barrier is installed. Learn more about vapor barrier installation.
Yes. Crawl space waterproofing can be done without full encapsulation when the home only needs targeted drainage, a sump pump, grading or downspout improvements, or a vapor barrier. Full encapsulation is helpful when the crawl space also needs sealed walls, closed vents, and controlled humidity. JHS Crawlspace Specialist recommends the level of work the home actually needs after inspection.
A properly designed crawl space waterproofing system can last for many years when the drainage, sump pump, vapor barrier, encapsulation materials, and dehumidifier are installed correctly and maintained. The longest-lasting results come from managing exterior water, keeping drains clear, servicing the pump and dehumidifier, and checking the crawl space regularly after heavy storms.
It can be. Standing water and high humidity can contribute to wood decay, damaged insulation, rusted metal and musty odors, even if you never go down there. Some air from the crawl space can also reach the living space, though how much varies by home. Water left in place tends to cause more damage over time, so it is worth having the source identified. Pest and termite protection are separate from waterproofing.
Yes. JHS Crawlspace Specialist provides crawl space waterproofing throughout Spartanburg and Greenville County and the surrounding Upstate, including Spartanburg, Greenville, Greer, Duncan, Inman, Boiling Springs, Moore, Roebuck, Chesnee, Wellford, Woodruff, Campobello, Landrum, Lyman, Reidville, Cowpens, Pauline, Five Forks, Taylors, Simpsonville, Mauldin and Travelers Rest. We are locally owned and based in Spartanburg. Call (864) 804-9384 or book online for a free inspection.
Most crawl space waterproofing projects are completed in one to three days. A vapor barrier with a dehumidifier for a mostly dry space is often a single day, while a full system with interior drainage, a sump pump and cleanout for a flooding crawl space may take two or three. After the free inspection you'll get a clear timeline along with your itemized quote, so you know what to expect before any work begins.
Yes. We stand behind our waterproofing work. Vapor barrier installations include a 3-year warranty, and full crawl space encapsulation systems include a transferable 25-year warranty — and both stay with the home, not the customer, so future homeowners keep the coverage. The dehumidifiers we install carry the manufacturer's warranty, which requires annual maintenance to stay in force. See our crawl space warranty page for full details, or we'll go over the exact coverage for your system during your free inspection.
Often, yes. For a crawl space that takes on water with storms, the plan may include an interior perimeter drain that collects the water, a sealed sump basin, and a sump pump, often with a battery backup, to discharge it away from the foundation. We also look at grading and downspouts to reduce how much water reaches the house. Results depend on the water source and the home, so we explain what the system is expected to manage before work begins.
Waterproofing can reduce conditions that support mold by removing standing water and reducing the moisture available for growth. Long-term control may also require reducing ground vapor, controlling humidity, and cleaning up existing growth or replacing damaged materials before the space is closed.
Humidity can enter through open vents or rise from damp soil even when no puddles are present. In that situation, drainage may not be the main need. A vapor barrier, vent sealing, encapsulation and a properly sized dehumidifier may be the more appropriate moisture-control plan.
JHS documents crawl space conditions, explains the available options, and reviews applicable workmanship and manufacturer warranty details before work begins.
Water under your home after rain? We'll inspect the whole space, look for where the water is coming from, take photos you can see, and give you a straight answer — no pressure to buy.
